Case Study

Increased Logistics Efficiency in Retail

twitter
linkedin
facebook

With globalized access to different retailers, without geographical restrictions, and the growing demands of consumers, competitiveness in this sector is increasing. To be able to focus on differentiating services and experiences, retailers need to ensure that their operations are optimized to deliver products with a high level of service at the lowest cost. This may entail working on the design of the supply chain, the operating model of the distribution centers and on the transport network in order to achieve maximum logistics efficiency.

The company

One of the biggest international players in the food retail segment, with a strong focus on the quality of its products, development of its own brand and partnerships with local suppliers. The business covers a network of more than 3100 shops and 30 distribution centers, spread across three countries and employs around 118,000 people. It belongs to a group with 225 years of experience and achieved a sales volume of around £16bn in 2020.

The challenge

Faced with the continuous growth in business volume along with the increase in services offered to consumers, the company felt the need to analyze the operations of its logistics distribution network. The aim of this analysis was to identify the weaknesses of the operation and design an operational model capable of moving the products more quickly, at a lower cost, and with a lower number of occurrences.

Aiming at the durability of the improvements to be implemented, implementing a culture of continuous improvement across the different operational areas was also vital.

A multidisciplinary project team was established involving members from the different areas of the operation: warehouses, transport, and supplies, with the common goal of maximizing logistics efficiency in distribution.

The approach

Increased productivity in distribution centers

The different operating modes in the distribution center required different analyses and solutions on a case-by-case basis. The solution used for the different warehouse operations was to simplify the administrative process of receiving items, making the most of information systems combined with sample checking. Shift changes were also optimized, minimizing their impact on the ongoing operation.

1. Logistics efficiency of the picking by store operation

For the operation component that works with items in stock and picking according to shop order, it was necessary to review the positioning of the items as well as the standard work of the picking operation itself.

The distribution of articles across the different locations has a significant impact on the distance travelled by the picking team, directly affecting the productivity of the operation. In addition, the picking sequence also affects the shop operation that will receive the products as they have to distribute them along the different aisles.

Thus, the warehouse was reorganized considering the volume and picking frequency of each item, its size (relevant for the palletization sequence) and its position in the aisles. This has resulted in a layout that minimises distance travelled and facilitates pallet construction, maximizing productivity, service level, and minimizing damaged goods.

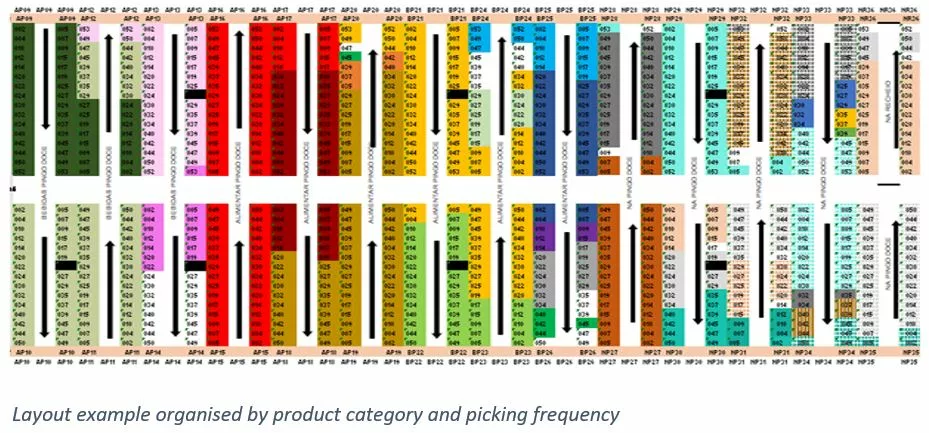

Layout example

The order picking method was also changed to batch-picking which allows an employee to pick for two shops simultaneously, taking into account the similarity of the orders received. In this way, in a single visit to a stock position, two shops are supplied.

2.Logistics efficiency of the picking by line operation

In this operation, to minimize the distance covered during the picking process, the layout was reorganized, changing the position of the shops to be supplied, taking into account the delivery time and the volumes and profiles of orders.

Adjusting the suppliers’ delivery schedule had a significant impact on the operation as it eliminated the need for excessive buffer zones, minimized multiple pallet handling and optimized the occupancy of the picking teams.

An algorithm for team sizing was also designed which allowed the workload to be levelled out, anticipated demand peaks and eliminated the night shift from the picking operation.

With visual management and continuous training of employees regarding the ideal pallet construction, it was possible to increase its final height, minimizing the number of pallets to be handled.

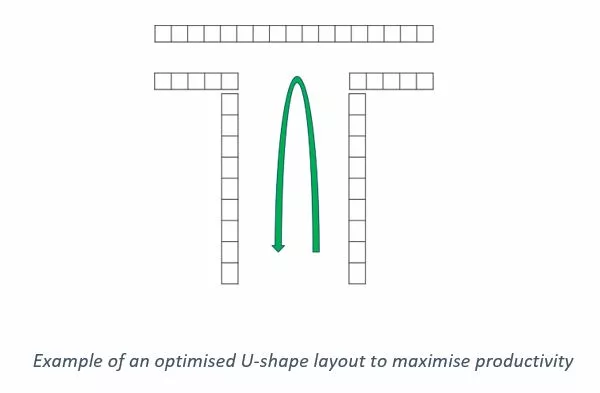

Optimised U-Shaped Layout

Transports optimization

The optimization of transport routes and fleet is dependent on the correct planning. To do this, it is necessary to have a reliable forecast of the number of pallets to be transported at each moment, for each shop.

In this regard, the first solution to be developed was a model to forecast the number of pallets that would deliver a forecast with more than 85% accuracy. With the correct forecast of the number of pallets, it was possible to create a routing algorithm that took into account all the restrictions and specificities of the routes, making the most of the different types of vehicles to be used. Additionally, given the increased height of pallets, and the consequent reduction in the number of pallets to be transported, the number of vehicles/shifts required has decreased.

Changing part of the vehicle fleet to a container pool system (the truck’s container is separated and loaded which allows the driver to distribute a different container using the truck and then return to collect the original container which has now been loaded) allowed minimizing the impact of set-up/loading time on the distribution route as this can now be done outside of the opening time of the routes. So, when the route starts it already has the pool ready to distribute.

Success in following the delivery route also depends on the in-store unloading operation, which was often responsible for delays along the route, due to the teams’ lack of preparation when the truck arrived. For this reason, an automatic alert system has been set up to ensure that the shop is ready to receive the goods the moment they arrive.

Improvement culture

In order to guarantee the continuous improvement of operations and employee performance, team dynamics were set up, supported by operation indicators that help the teams plan, train and problem solve. The role of the team leaders was also standardized, and they now have a defined process for monitoring the operation to improve results.

The results

The layout changes, operations standardization, team training and improvement dynamics contributed to a 20% increase in productivity (measured in boxes per hour) with no increase in the number of occurrences.

The change in the transport network has reduced operating costs by 10%. The solutions implemented can be replicated in the different distribution centers obtaining the same results.
