What is PFMEA? A complete guide to Process Failure Mode and Effects Analysis for production processes

As production processes increase in complexity, quality control requires an increasingly preventive approach. New equipment, automated lines, process changes, and increasing customer requirements make it essential to identify and control risks before they result in defects, waste, or production interruptions. This is precisely the objective of PFMEA (Process Failure Mode and Effects Analysis).

PFMEA is a structured risk analysis and management methodology that makes it possible to identify potential failure modes in a production process, analyze their respective effects and causes, and define actions that prevent their occurrence or improve detection capability. By favoring a preventive approach, this methodology helps reduce waste, increase process stability, and develop more robust production systems.

Currently used across various sectors of the discrete and process manufacturing industry, PFMEA supports the industrialization of new products, the introduction of new processes, and continuous improvement initiatives.

In this article, we cover the meaning of PFMEA, how it works, when it should be developed, what the methodology’s main steps are, how it differs from DFMEA, and how it helps improve quality, productivity, and the reliability of production processes.

Why is PFMEA essential for production process reliability

A production process may meet all specifications during initial trials and still reveal problems once it enters series production. Process variations, assembly errors, tool wear, equipment failures, inadequate methods, or differences in how operations are carried out can lead to defects, rework, waste, or customer complaints.

PFMEA makes it possible to anticipate these risks before they affect process performance. This approach is particularly important for ensuring quality in discrete manufacturing, where small process variations can compromise product compliance and customer satisfaction. Rather than waiting for a nonconformity to be detected during production or by the customer, the methodology helps identify where the process may fail, understand the underlying causes, and define actions to prevent these failures or improve the ability to detect them in a timely manner.

Beyond reducing defects, PFMEA supports decision-making throughout industrialization, making it possible to select the most appropriate process controls, set improvement priorities, and contribute to reducing industrial costs associated with rework, waste, and non-quality.

When applied systematically, PFMEA helps to:

• Reduce defects, rework, and waste.
• Improve process stability and capacity.
• Increase the reliability of manufacturing and assembly operations.
• Support the definition of control plans and error-proofing tools (poka-yoke).
• Reduce non-quality costs and increase customer satisfaction

DFMEA vs. PFMEA: What is the difference?

Although they use the same risk analysis logic, PFMEA and DFMEA (Design Failure Mode and Effects Analysis) are applied at different points in time and answer different questions.

DFMEA is developed during product design and seeks to identify potential failures associated with the design before industrialization. Its objective is to ensure that the product has been designed robustly and meets functional, performance, and safety requirements.

PFMEA, however, is developed during the planning and industrialization of the production process. Its focus is to ensure that the manufacturing, assembly, inspection, and material-handling process can produce the product consistently, minimizing the risk of defects, variations, and nonconformities.

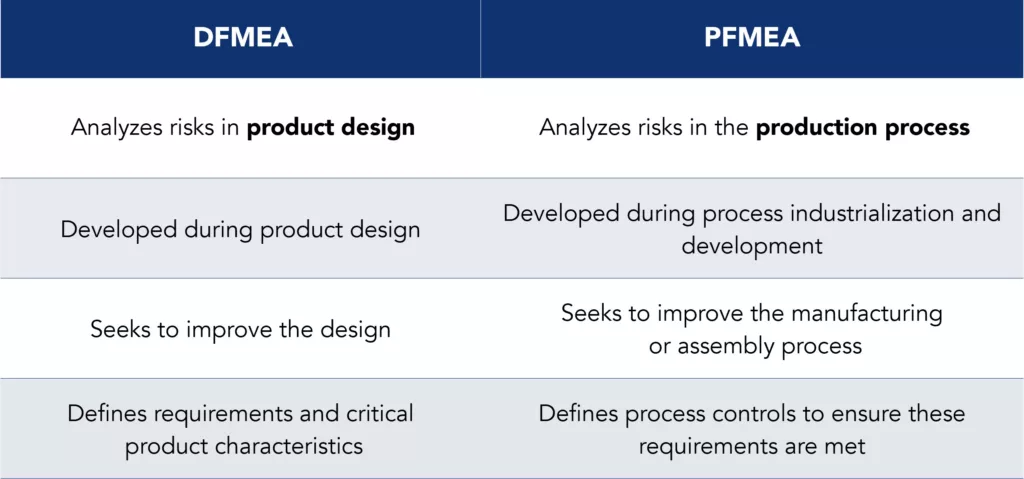

Table 1 – Comparison between DFMEA and PFMEA

DFMEA and PFMEA complement each other. Risks identified during product development provide an important starting point for developing the production process, ensuring that critical characteristics are considered when defining manufacturing methods, control plans, and prevention and detection activities.

When should a PFMEA be developed?

The process FMEA should be started during the design and planning of the production process, before the start of series production. Its objective is to ensure that risks are identified and addressed while it is still possible to introduce process improvements simply and with less impact on costs, deadlines, and productivity.

The methodology is typically developed in parallel with the design of the manufacturing process and should track the entire industrialization phase. As the process evolves, the analysis is reviewed to incorporate new knowledge, validate the effectiveness of the controls implemented, and ensure that it continues to reflect the actual risks of the operation.

Although it is often associated with the launch of new products, PFMEA should also be used whenever significant changes occur in the production process or new sources of risk arise.

The most common situations include:

• Design of a production line.
• Industrialization of a new product.
• Changes to the production flow or line design.
• Introduction of new equipment, tools, or technologies.
• Modifications to work methods or process parameters.
• Changes in suppliers, materials, or components that may affect the process.
• Customer complaints, recurring nonconformities, or audit results that reveal new risks.

More than a document prepared at the start of a project, PFMEA should be treated as a living document. Whenever there are changes to the process or new knowledge is gained about its performance, the analysis should be updated to ensure that risks remain under control and that action plans remain adequate.

Steps of PFMEA

PFMEA is developed through a structured analysis of each step in the production process, making it possible to identify where failures may occur, understand their causes, and implement actions to reduce the risk before production begins or problems reach the customer.

According to the AIAG & VDA FMEA methodology (2019), PFMEA should be based on a detailed understanding of the manufacturing process. To this end, the team typically uses documents such as the Process Flow Diagram (PFD), which describes the sequence of operations, and links to the control plan, ensuring that the identified risks are translated into effective controls during production.

Throughout the analysis, each operation is evaluated individually. For each one, the potential failure modes, their effects, the causes that may give rise to them, the existing controls, and the actions needed to reduce the risk are identified. This approach makes it possible to act preventively on the process, increasing its stability and capability.

Although the structure may vary between organizations, developing a PFMEA typically follows a set of phases described below.

1. Define the scope and map the process

The first step consists of defining the scope of the analysis and mapping the end-to-end process flow to be evaluated. The team identifies the boundaries of the analysis, the operations involved, the interfaces between processes, and the flow of materials and information.

This phase is typically based on the Process Flow Diagram (PFD), which represents the sequence of operations and serves as the reference for developing the PFMEA. Rigorous process mapping ensures that all relevant steps are analyzed and reduces the risk of omitting potential sources of failure.

2. Identify failure modes, effects, and causes

After understanding the process, the team analyzes each operation to identify potential failure modes, that is, the ways in which that operation might fail to meet the defined requirements.

For each failure mode, the effects on the product, the next process, or the customer are assessed, and a severity rating is assigned, representing the potential impact of the failure.

Next, the potential causes that may give rise to each failure mode are identified. These may be related, for example, to inadequate process parameters, tool wear, assembly errors, equipment, work methods, materials, or human factors.

Based on this analysis, an occurrence rating is assigned, which estimates the probability that the potential cause of the failure will occur.

3. Evaluate process controls

After identifying the causes, the team analyzes the controls currently in place to reduce the risk.

Prevention controls seek to prevent the failure cause from occurring, through methods such as poka-yoke tools, validated process parameters, automation, standardized work instructions, operator training, or preventive maintenance.

Detection controls aim to identify the failure before the product moves on to the next operation or is delivered to the customer. Examples include inspections, tests, machine vision systems, automatic process monitoring, functional tests, and Statistical Process Control (SPC).

At this stage, a detection rating is also assigned, reflecting the ability of these controls to identify the cause or failure mode before it results in a nonconforming product.

4. Prioritize risks and define improvements

After classifying severity, occurrence, and detection, the team determines which risks require priority action

The AIAG & VDA FMEA methodology (2019) recommends the use of Action Priority (AP) to support this decision, although many organizations continue to rely on the Risk Priority Number (RPN). Regardless of the method used, the objective is to focus efforts on the risks with the greatest potential impact on the customer or on process performance.

Improvement actions may include changes to manufacturing methods, parameter optimization, implementation of poka-yoke tools, improved control systems, enhanced operator training, revised work instructions, or changes to the production line design.

Each action must have an owner, an implementation deadline, and a method for verifying its effectiveness.

5. Update the PFMEA and foster continuous improvement

The PFMEA in industry does not end once the process enters production. On the contrary, it should track the entire evolution of the production process, reflecting the changes implemented and the knowledge gained during operation.

Whenever there are process modifications, new equipment, material changes, customer complaints, audit results, or improvement opportunities, the analysis should be reviewed to ensure that it continues to represent the actual risks of the process.

When integrated into continuous improvement routines, PFMEA stops being merely a documentation requirement and becomes an organizational learning tool, helping strengthen process stability, improve quality, and prevent the recurrence of problems.

What information should a PFMEA template include?

A PFMEA template or model organizes all the information gathered during the production process analysis, allowing for the documentation of the identified risks, existing controls, and the actions needed to reduce the probability of failure.

Although the format may vary between organizations, the structure typically follows the logical sequence of the process analysis.

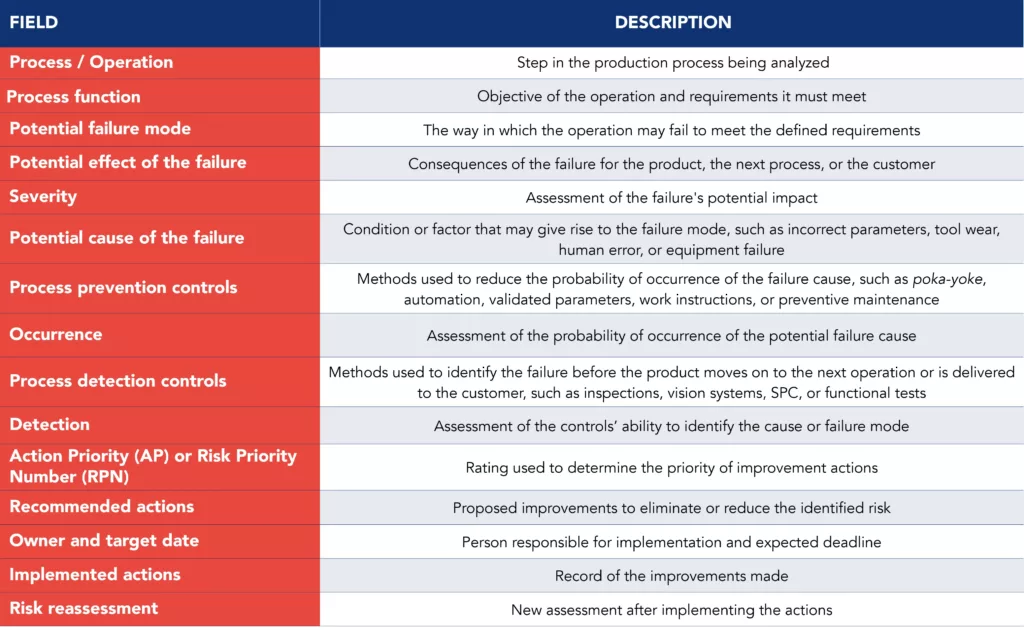

Table 2 – Fields in aPFMEA template

Regardless of the format used, PFMEA should be updated whenever there are changes to the process, new equipment, modifications to manufacturing methods, or new information from production. In this way, it stops being a static document and becomes a repository of knowledge about process performance, supporting continuous improvement and the prevention of future failures.

How does PFMEA relate to the control plan and APQP?

PFMEA should not be developed in isolation. Its greatest value is achieved when it is part of a structured quality planning process, ensuring that identified risks are translated into effective controls during production.

In the context of Advanced Product Quality Planning (APQP), PFMEA is developed during production process development and serves as the basis for defining the control plan. While PFMEA identifies potential failure modes, their causes, and associated risks, the control plan establishes the activities needed to monitor and control these characteristics throughout production.

In the automotive sector, PFMEA is one of the main solutions for automotive manufacturers seeking to reduce risks during industrialization and meet the requirements of APQP, PPAP, and IATF 16949. Today, the methodology is also used across many other industrial sectors.

This relationship ensures that risks identified during the analysis do not remain merely documented but are translated into control measures that ensure process stability and capability.

PFMEA should also maintain a consistent connection with the Process Flow Diagram (PFD). Any change to the process flow, the sequence of operations, or the manufacturing methods should be reflected in these three documents, ensuring that they represent the same operational reality.

When developed in an integrated way, the process flow diagram, PFMEA, and the control plan form a coherent risk management system, allowing information gathered during industrialization to be used to prevent defects, improve process capability, and support continuous improvement.

Most common errors in applying PFMEA

The effectiveness of PFMEA depends less on the form used and more on the quality of the analysis carried out by the team. When developed only to meet customer requirements, audits, or quality standards, it fails to fulfill its main purpose: preventing failures before they occur.

The most frequent errors include:

• Developing the PFMEA too late, when the process is already stabilized and changes require significant investment or production interruptions.
• Reusing PFMEAs from previous projects without analyzing the current process, assuming that identical risks will always have the same causes and controls.
• Confusing detection controls with prevention controls, relying excessively on inspection instead of eliminating or reducing the causes of failures.
• Not updating the PFMEA after process changes, such as new equipment, layout changes, new suppliers, parameter modifications, or changes in work methods.
• Developing the PFMEA without a multidisciplinary team, limiting the analysis to quality engineering and excluding areas such as manufacturing, maintenance, process engineering, logistics, or operators.
• Not reflecting the actions defined in the control plan, preventing the identified risks from being effectively controlled during production.

When used as a dynamic tool for process analysis and improvement, PFMEA makes it possible to anticipate problems, strengthen operational stability, and reduce the likelihood of failures recurring.

How to integrate PFMEA into an operational excellence strategy

The true value of PFMEA lies not in preparing the document, but in using it as a continuous improvement tool. When integrated into process management routines, it stops being merely a risk analysis and starts supporting decision-making throughout the entire production life cycle.

Information gathered during the daily management of production, such as quality indicators, audit results, customer complaints, process deviations, corrective actions, or improvement projects, should continuously feed the PFMEA. In this way, the knowledge gained from operations turns into preventive actions that reduce the likelihood of problems recurring.

This approach reinforces a culture of build-in quality, in which quality is ensured through robust, controlled processes rather than through detecting defects at the end of production. At the same time, it promotes greater collaboration between process engineering, production, quality, maintenance, and logistics, ensuring that improvement decisions take the entire production system into account.

Integrated into a strategy of operational excellence in industry, PFMEA helps develop more robust processes and implement improvements at the source of problems. The result is more stable and capable processes, greater operational predictability, less waste, and consistent production over time.

This logic of prevention and continuous improvement runs through Kaizen Institute’s work with industrial organizations, whether in quality consulting, discrete manufacturing or Lean product development, linking the robustness of design, process, and daily operations as parts of the same risk management system.

Still have some questions about PFMEA?

What does PFMEA mean?

PFMEA stands for Process Failure Mode and Effects Analysis. It is a methodology used to identify, assess, and reduce the risks associated with a production process before they result in defects, waste, or problems for the customer.

When should a PFMEA be developed?

PFMEA should be developed during the planning and industrialization of the production process, before the start of series production. It should also be reviewed whenever there are significant changes to the process, new equipment, material modifications, customer complaints, or identified improvement opportunities.

What is the difference between PFMEA and the control plan?

PFMEA identifies and assesses the risks of the production process, while the control plan defines the activities needed to monitor and control these risks during production. Both are complementary: PFMEA identifies what could fail, and the control plan establishes how to control these potential failures.

What is the difference between PFMEA and DFMEA?

DFMEA analyzes the risks associated with product design during the development phase, while PFMEA assesses the risks related to the manufacturing, assembly, and control process. Together, they ensure that both the product and the process are developed robustly.

What is the difference between RPN and Action Priority?

The Risk Priority Number (RPN) calculates risk priority by multiplying the severity, occurrence, and detection ratings. The Action Priority (AP), introduced by the AIAG & VDA FMEA methodology (2019), uses hierarchical decision tables that assign a high, medium, or low priority to improvement actions, providing a more consistent approach to risk management.

Who should participate in developing a PFMEA?

PFMEA should be developed by a multidisciplinary team that includes, whenever possible, professionals from process engineering, manufacturing, quality, maintenance, logistics, and industrialization. The participation of operators and specialists with hands-on process knowledge helps identify risks that would be difficult to detect through technical documentation alone.

Is PFMEA mandatory?

Whether PFMEA is mandatory depends on the industry and applicable requirements. In industries such as automotive, it is frequently required under APQP (Advanced Product Quality Planning), PPAP (Production Part Approval Process), and the IATF 16949 standard, published by the International Automotive Task Force (IATF). Even when it is not a formal requirement, it is widely recognized as a best practice for reducing risks, improving process stability, and supporting continuous improvement.

What is the AIAG & VDA FMEA methodology?

The AIAG & VDA FMEA methodology is the approach published in 2019 by the Automotive Industry Action Group (AIAG) and the Verband der Automobilindustrie (VDA) to harmonize the application of FMEA in the automotive industry. It introduced a structured seven-step approach and replaced prioritization based solely on the Risk Priority Number (RPN) with Action Priority (AP), enabling a more consistent assessment of risks and improvement actions.

What is Advanced Product Quality Planning (APQP)?

The Advanced Product Quality Planning (APQP) is a methodology developed by the North American automotive industry and published by the Automotive Industry Action Group (AIAG) to plan and manage the development of new products and production processes. Its objective is to ensure that customer requirements are met from the early stages of the project through the start of series production. PFMEA is one of the main APQP tools, used to identify and reduce process risks before production begins.

What is Process Flow Diagram(PFD)?

The Process Flow Diagram (PFD) is a diagram that graphically represents the sequence of operations in a production process, from the receipt of materials to the shipment of the product. As part of Advanced Product Quality Planning (APQP), it is used as a reference document for developing the PFMEA and the control plan, ensuring a consistent view of the process flow and associated risks.
